WISY Horizontal leaf rainwater filter
One of our customers purchased a WISY linear AK100 horizontal rainwater filter from us. He had limited space to install a primary rainwater filter in a gutter downpipe and applied a creative way to use the filter. See the image below.
After installation the unit was painted the color of the house to blend in with the property
Saradox factory extends its rainwater harvesting capacity
During the 2020 floods in Durban the water supply to the Saradox factory in Durban South, was interrupted for 16 days. Fortunately, they had a rainwater harvesting system installed in 2018 and the water storage system was able to supply the factory to keep production going. They have now extended and increased the capacity of the rainwater system. Two new, inline WISY primary filters and rainwater recovery points and an additional 20000 litres of storage capacity was installed.
Read more: Saradox factory extends its rainwater harvesting capacity
WISY at Water-show Africa
Our company as agents for WISY AG exhibited at the Watershow Africa in Sandton. The recent water shortage in South Africa and the ongoing water problems in the country has put more focus on proper water installation design. Our design engineering team had to field many questions on proper rainwater harvesting system design. Guests and customers were able to see the working of our WISY primary rainwater harvesting filters as well as examples of where they have successfully been installed and been in operation for many years.
Rainwater harvesting system in Westbrook
Our company designed and installed an integrated rainwater harvesting system for a house in Westbrook. The system was integrated into the design of the house. Our client required a system that would provide potable quality rainwater as well as a backup volume of water in case of water interruptions. It was also required for the system to boost the water pressure to the house.

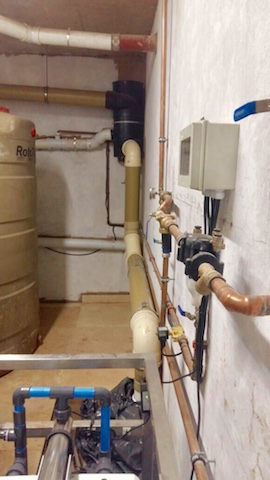

Integrated rainwater system in Zimbali
Our company was commissioned to design and install a rainwater harvesting system in one of the luxury homes in Zimbali Eco estate, Ballito. The design was completed in the early stages of the development and our team worked with the architects, project managers and plumbing contractors to produce rainwater harvesting system tailored to the households needs. The system was designed to fit into the cellar of the new house.
Water from the roof of the building is fed into a Wisy® WFF150 vortex filter where after it feeds into the first of two 5000 liter water tanks. A Wisy smoothing inlet, surface skimming overflow and floating suction are also used in the installation.The rainwater harvesting system is combined with a municipal back-up system to ensure that the water interruptions and pressure reductions do not affect this home.A Grundfos® CMBE3-62 multistage constant pressure pump supplies water to the household via a frame mounted filter set, ensuring all water has been treated and sterilized. The pump also supplies unfiltered water to the irrigation system.A backflow preventer valve was installed in the water supply line, to comply with estate rules and current legislation.
